OCHW Computers

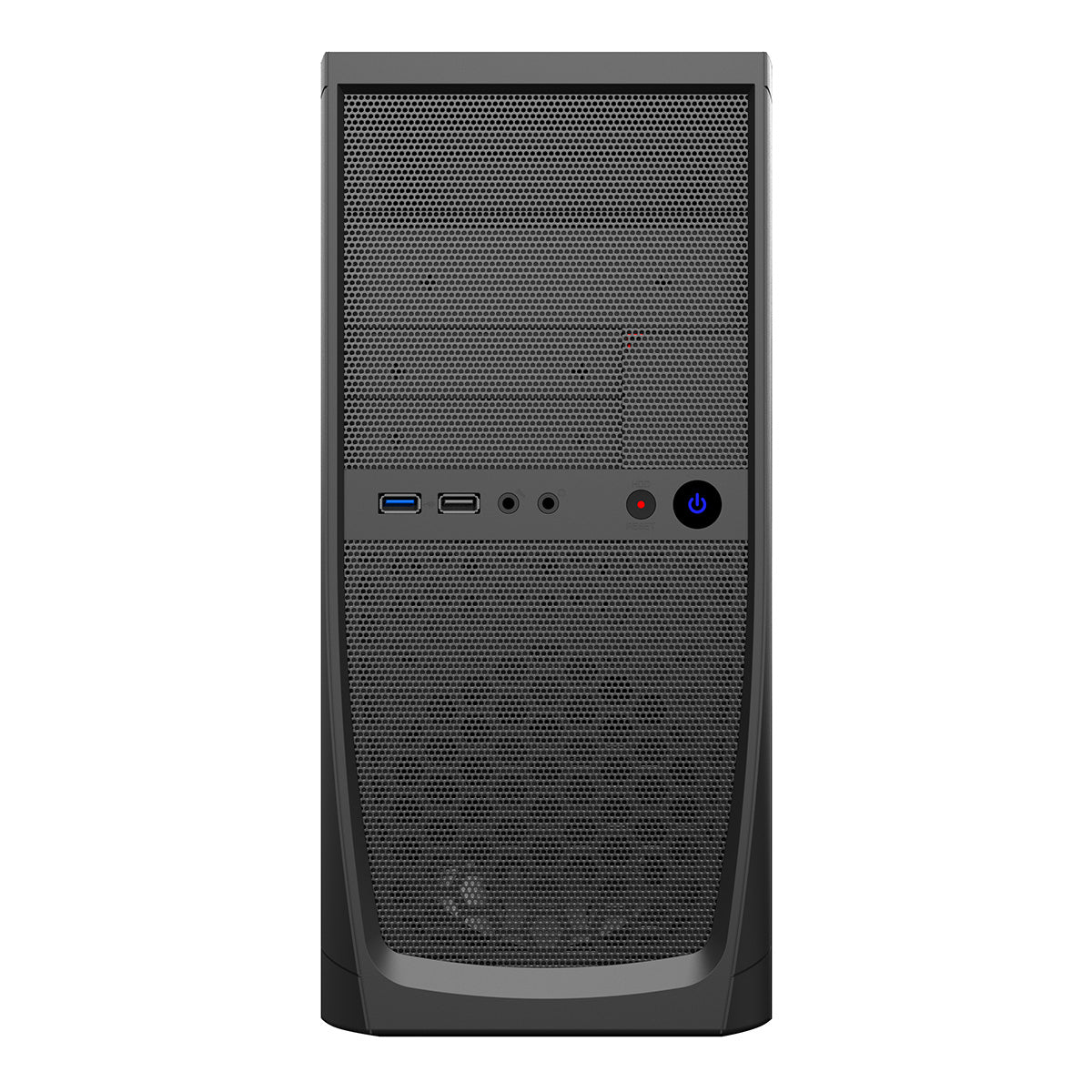

Elite Micro ATX Case Black Interior 500W 12cm Black PSU
Elite Micro ATX Case Black Interior 500W 12cm Black PSU
Regular price
ÂŁ54.99 GBP
Regular price
Sale price
ÂŁ54.99 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
The CiT elite is a budget focused Micro-ATX chassis aimed at business and home office solutions. The Elite is one of the best air cooling solutions with a full mesh front panel for a professional look and is equipped with a USB3 port on the front of the I/O panel. The Elite also includes a rear 80mm fan.
The Elite is an ideal choice for anyone looking to build an office or home based PC on a budget.
Key Features
Specifications
| PSU Rail Output (max.): | |
| +3.3V: | 26A |
| +5V: | 27A |
| +12V: | 22A |
| -12V: | 0.5A |
| +5VSB: | 2.0A |
| PSU Connectors & Qty: | |
| 20 + 4pin ATX Mainboard: | 1 |
| 4pin +12V CPU: | 1 |
| SATA: | 3 |
| 4pin Molex: | 2 |
| FDD: | 1 |
| : | |
| Chassis Size (Without the Front panel and Side Panel): | (W) 173 x (H) 370 x (D) 365mm |
Case Specifications
| Form Factor: | Micro ATX |
| Motherboard Support: | Micro ATX, Mini ITX |
| PSU Support: | Standard ATX |
| PSU Location: | Top |
| Gaming Case: | No |
| Water Cooling: | Not Water Cooling Ready |
| Body Material: | 0.5mm SPCC |
| Front Bezel Material: | Mesh |
| Side Panel: | Vented |
| Internal Cable Management Depth: | 21mm |
| External Bays: | 2 x 5.25” External 2 x 3.5” External |
| Internal Bays: | 1 x 3.5” Internal 2 x 2.5” Internal |
| Drive Bay Notes: | |
| Expansion Slots: | 4 x Full Size |
| Cooling Front: | Space for 1 x 80mm Fan |
| Cooling Top: | None |
| Cooling Rear: | 1 x 80mm Fan (1 x 80mm Fan inc.) |
| Cooling Side: | Vent |
| Cooling Bottom: | None |
| IO Ports: | 1 x USB 3.0 1 x USB 2.0 1 x HD Audio |
| GPU Max Length: | 330mm |
| CPU Cooler Maximum Height: | 160mm |
| Front Bezel Colour: | Black |
| Body Colour: | Black |
| System Cabinet Features: | Supports Kensington Lock |
| PSU Included: | Yes |
General Specifications
| Manufacturer Part Number: | Elite |
| EAN Number: | 5055492406101 |
| Has Mains Plug: | No |
| Colour: | Black |
| What's In The Box: | Case Screws |
| Unit (Product) Dimensions (mm): | 173mm x 414mm x 371mm (W x H x D) |
| Packaging Dimensions (mm): | 209mm x 445mm x 405mm (W x H x D) |
| Net Weight (KGs): | 4.2 KGs |
| Gross Weight (KGs): | 4.8 KGs |
